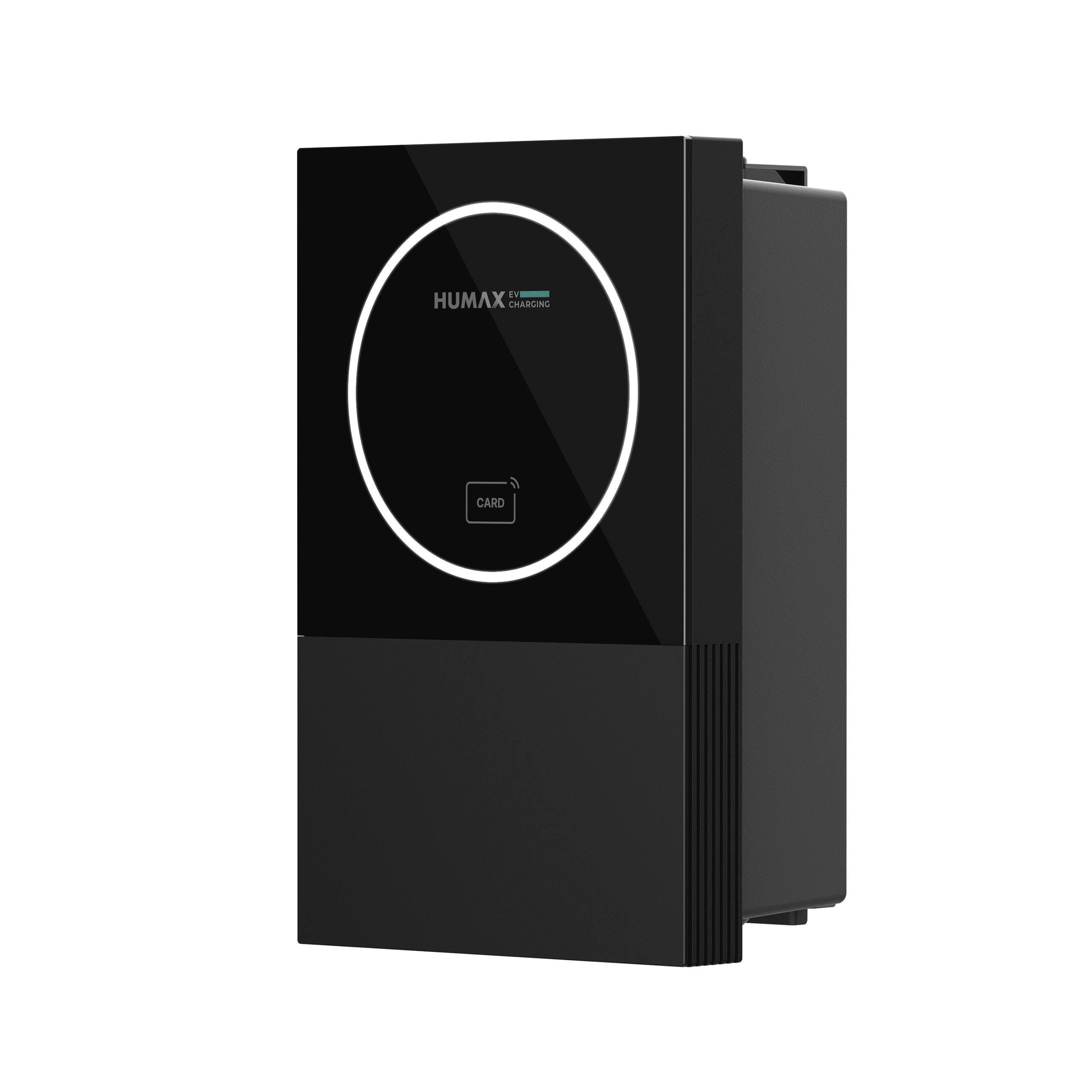

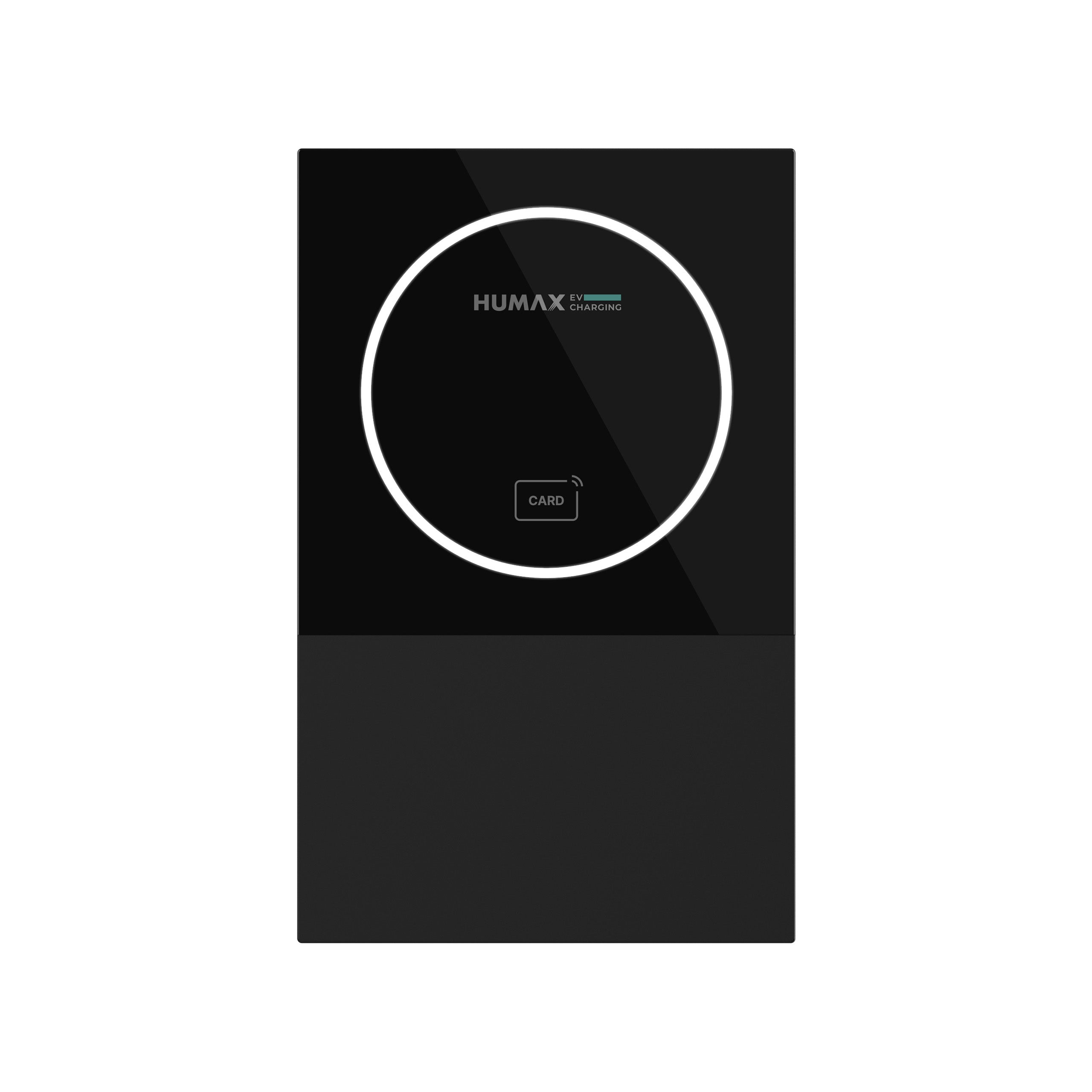

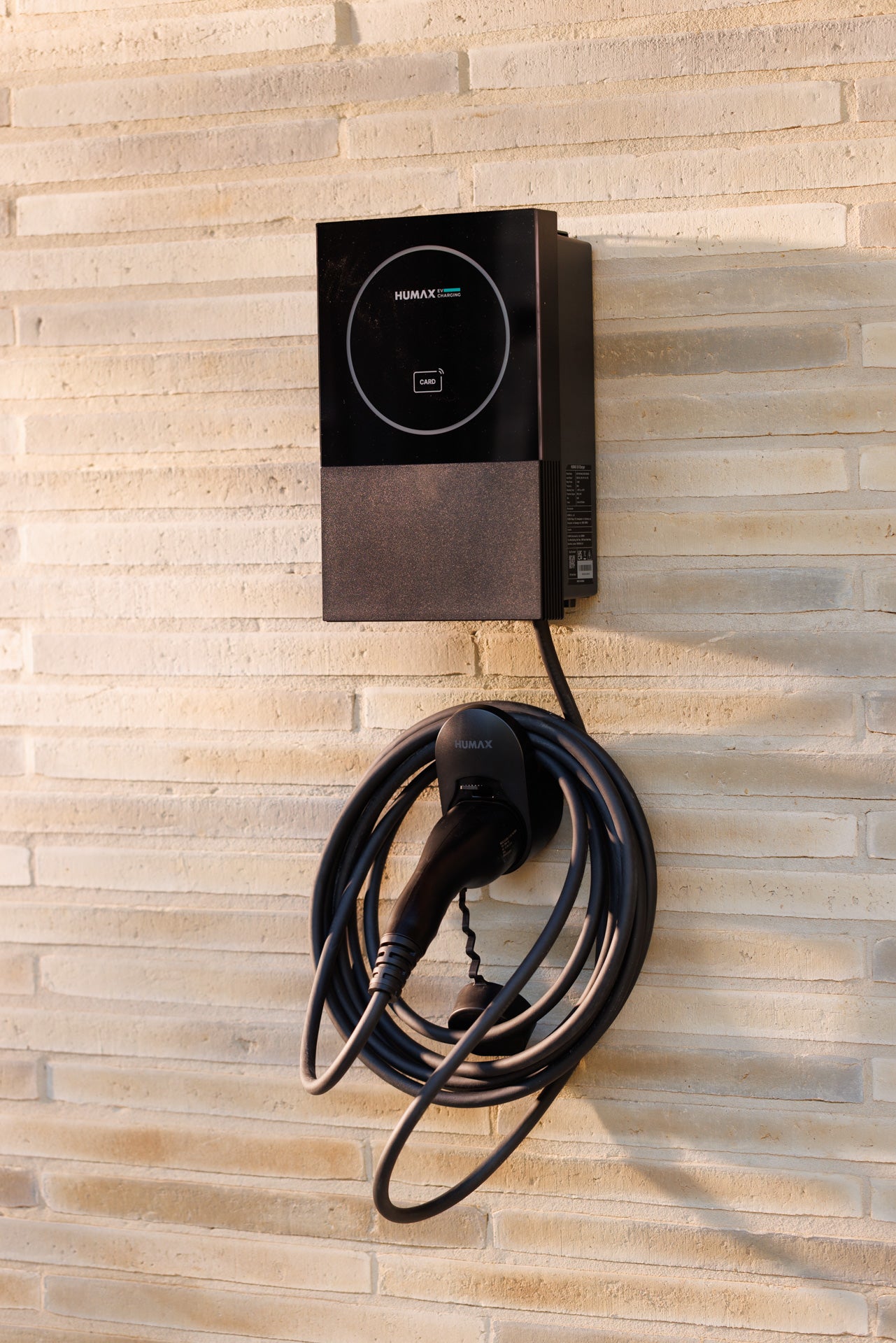

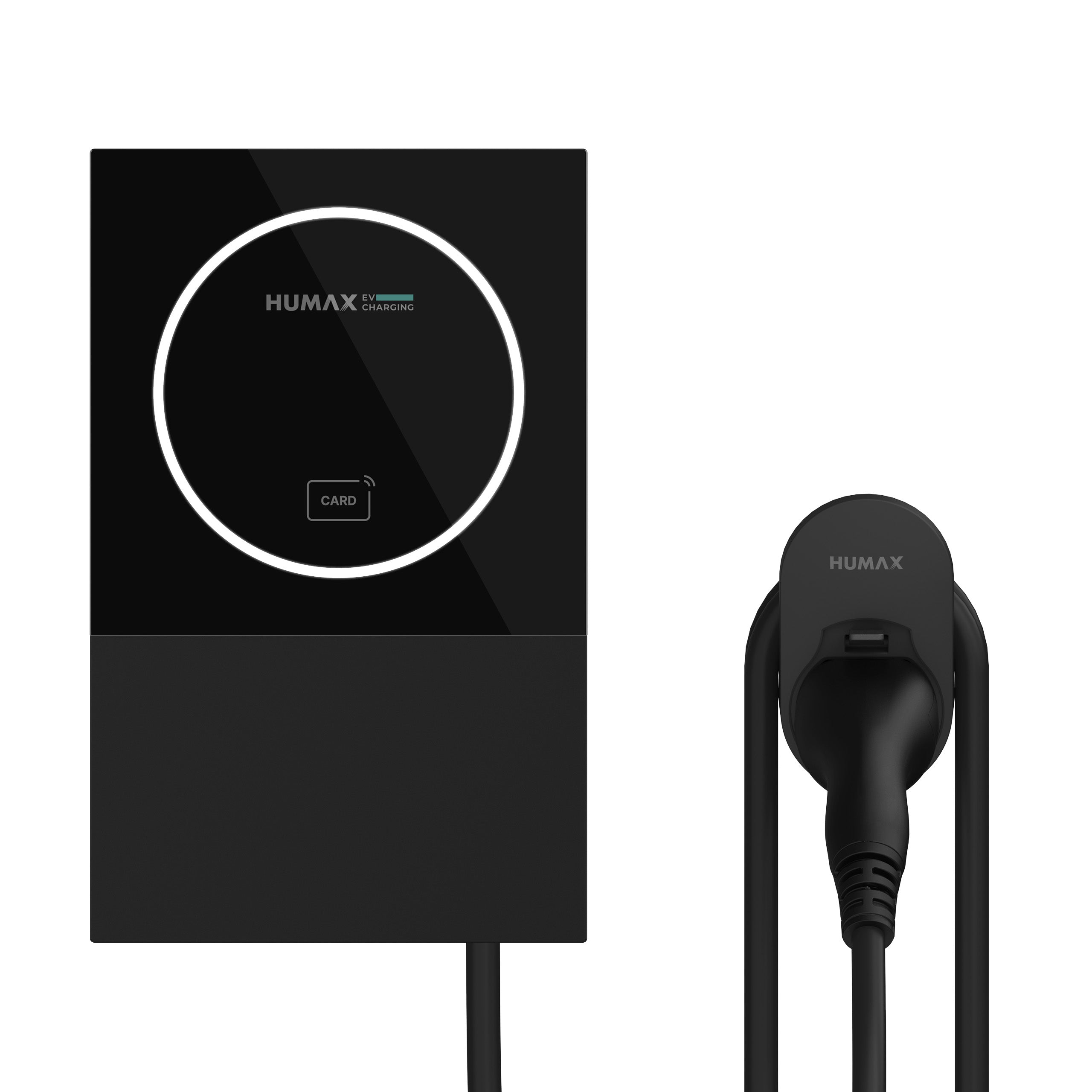

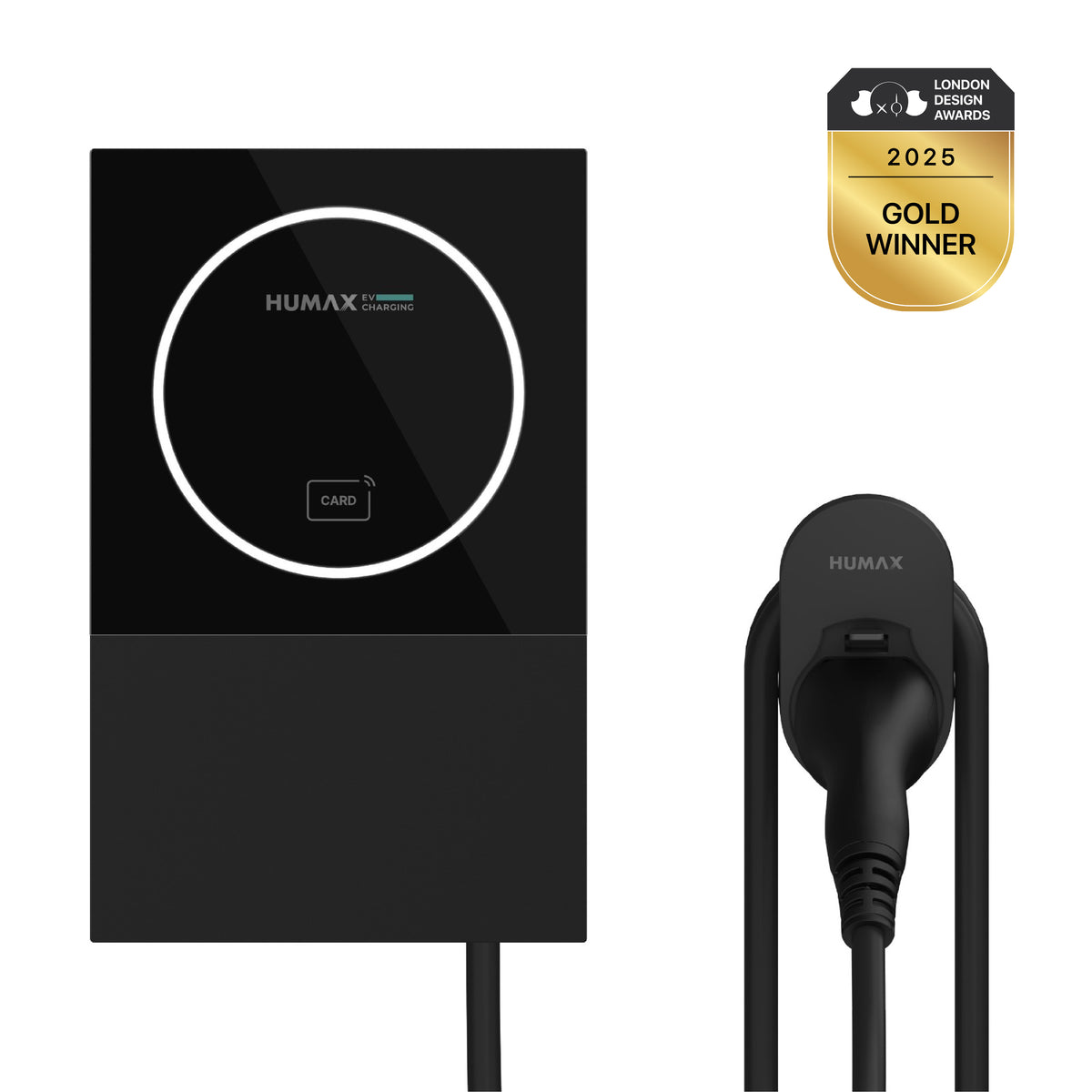

Humax MX7 Smart EV Charger | Tethered
V2G Future-Ready | 7.4kW | Tethered | Type2 | Single Phase | Wall Mounted | Wi-Fi & Bluetooth | App Controlled | Compatible with All EVs & PHEVs | OZEV Compliant | Black
Tax included.
Customer support is available Mon-Fri 9am-5:30pm. Learn more >
5 years warranty when you register this product online.
Return your purchase within 30 days for a full refund. Hassle-free, guaranteed. Learn more >

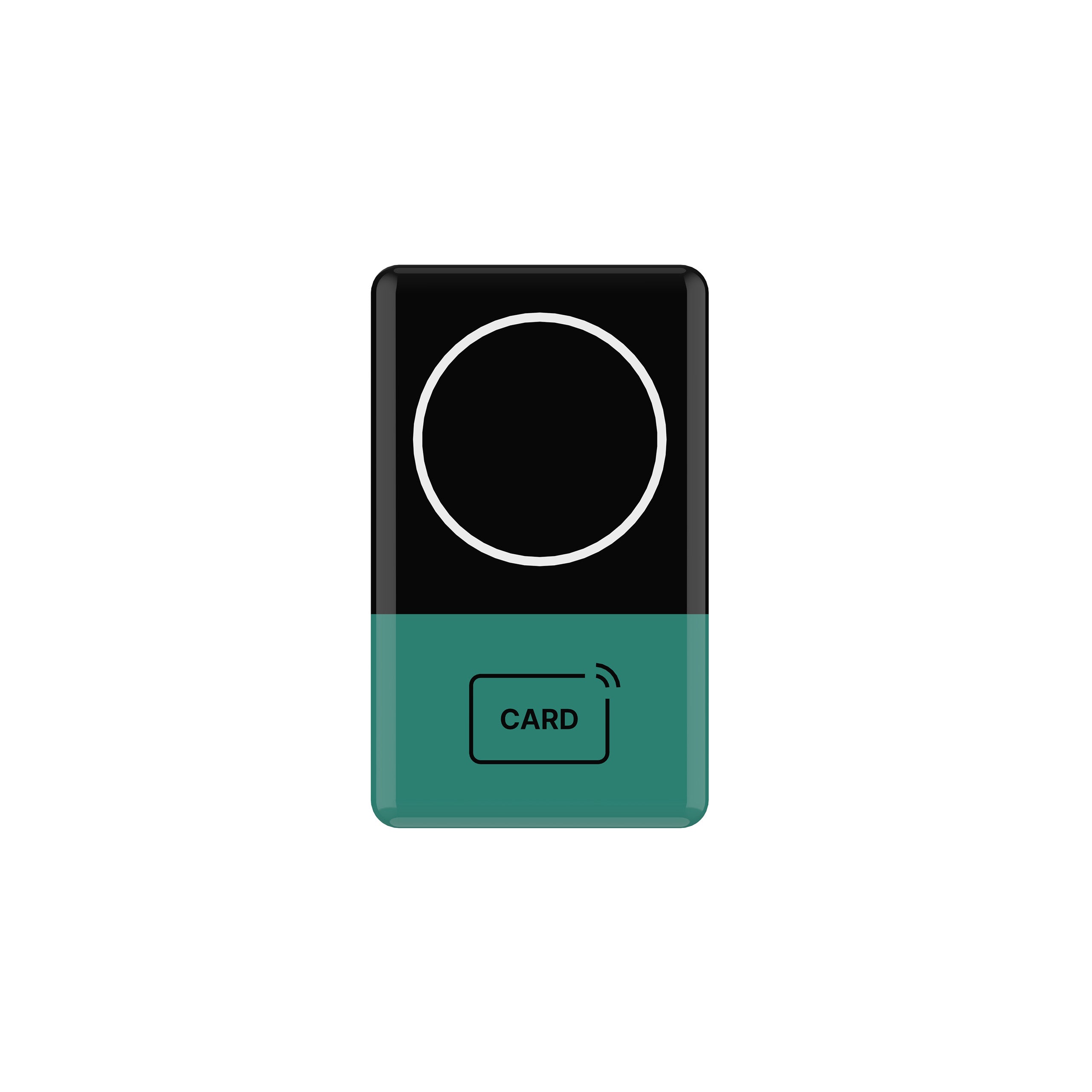

EV charger, wall bracket, CT clamp & connector, ferrule terminals, screws, extension connector, 2 x RFID cards, and a quick guide.
You have two easy options for installation.
1. Installation only : After you make a purchase, you will receive a link with our recommended installer. Installation starts from £499 (VAT incl.) for a standard installation.
2. Product + Installation :
You can also get the charger and installation together as one package. This starts at £1,159 for 5M & £1189 for 7.5M variants (VAT incl. ) and includes both the charger and a standard installation.
Book this option here
We recommend checking your vehicle model and make and energy provider for the most up-to-date information on V2G readiness and support.
MX7 is V2G-harware ready—meaning it includes the necessary PLC module and supports the ISO 15118 protocol. The actual ability to use V2G or V2H depends primarily on your vehicle manufacturer enabling this feature.
V2G & V2H capability also requires collaboration between your vehicle, energy tariff provider, and local grid operator. Availability can vary depending on your region, vehicle compatibility, and local infrastructure.

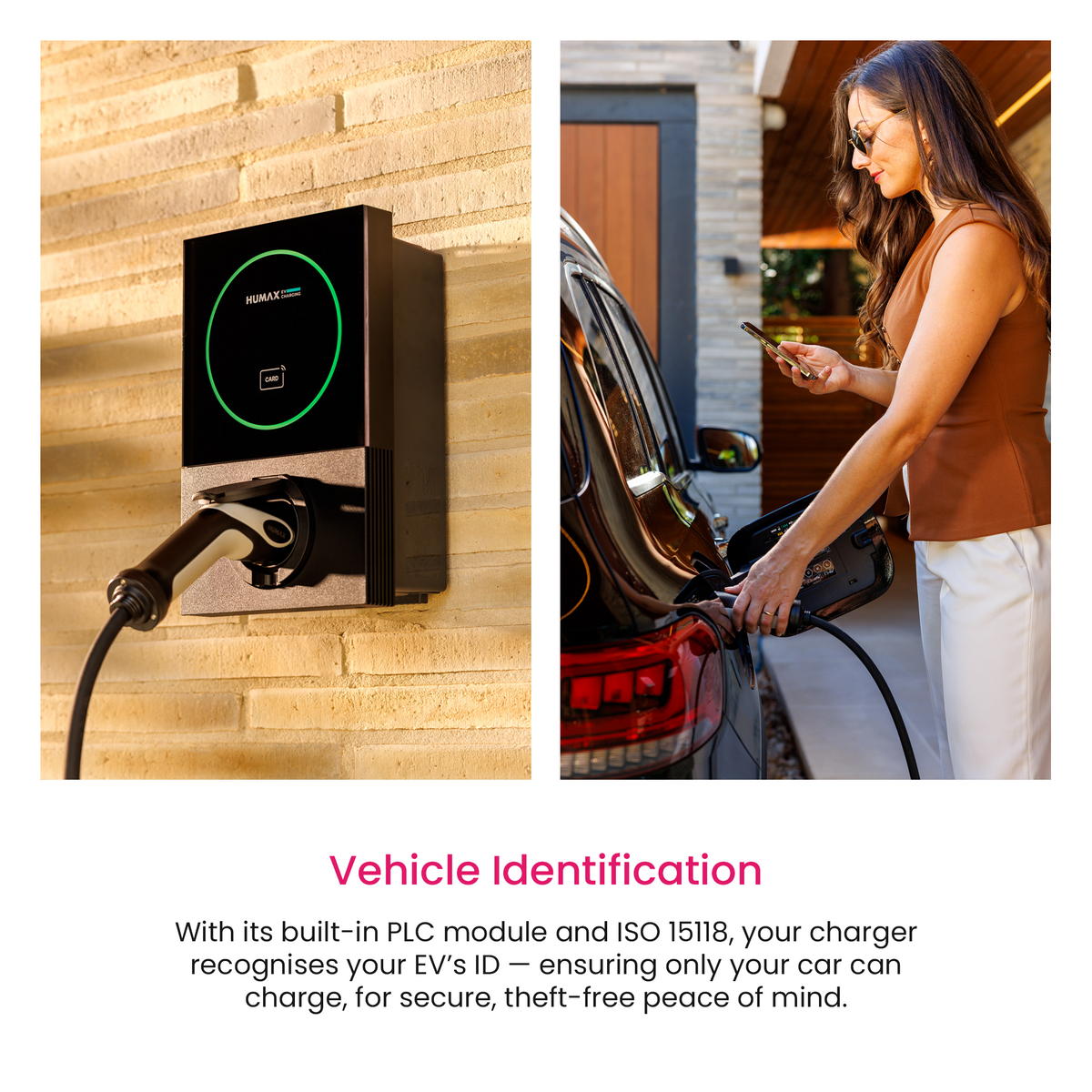

Vehicle Identification
Thanks to the built-in PLC module, your charger automatically recognises your EV’s unique ID — so only your vehicle can charge. That means greater security, no energy theft, and total peace of mind.

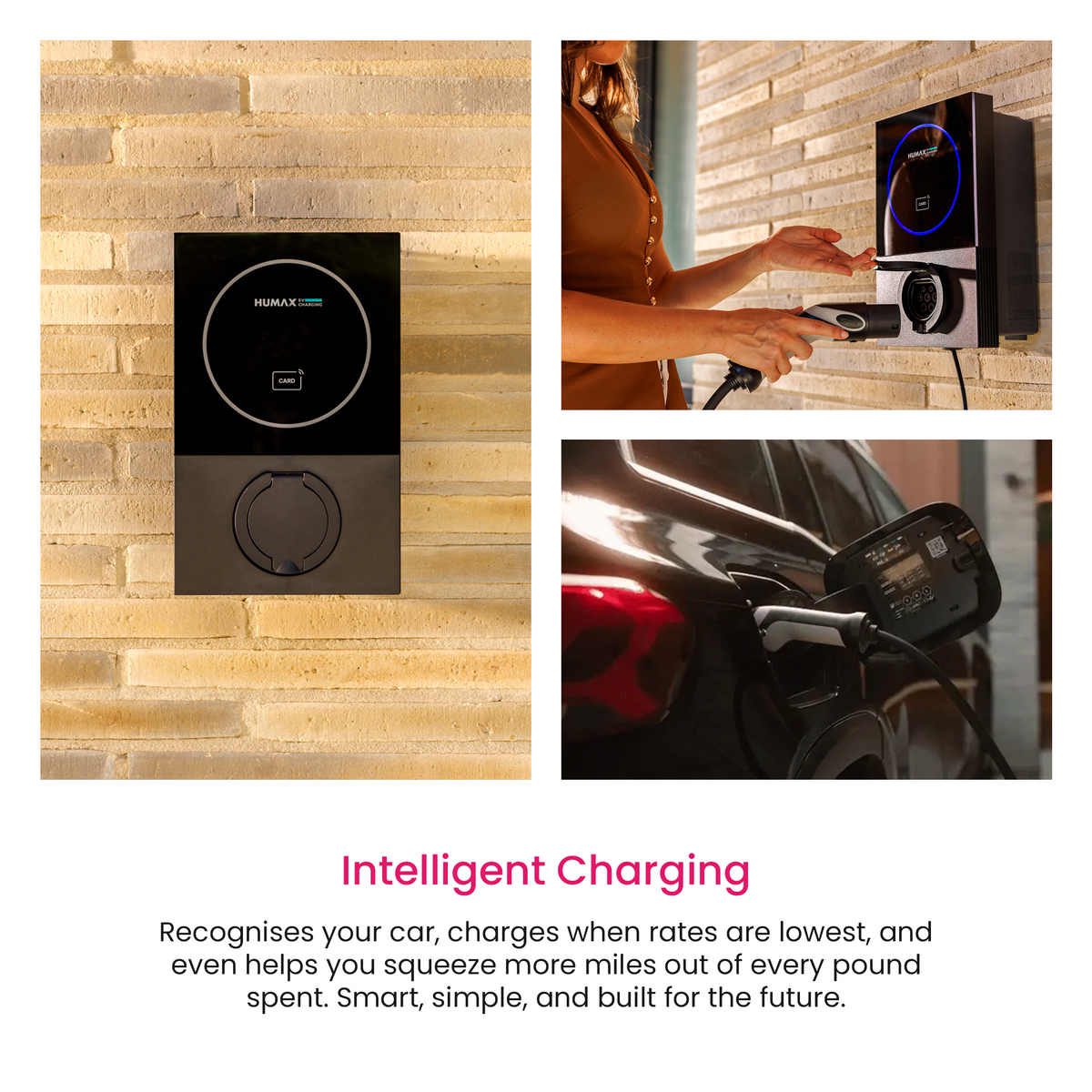

Intelligent Charging
Powered by two intelligent technologies:
Vehicle Identification – Instantly recognises your vehicle and adapts charging based on its specific battery size.
Tariff Management – Automatically prioritises off-peak electricity rates for maximum savings.
Together, they deliver true cost savings and better control on your charging - helping you get more mileage out of your energy and your budget.

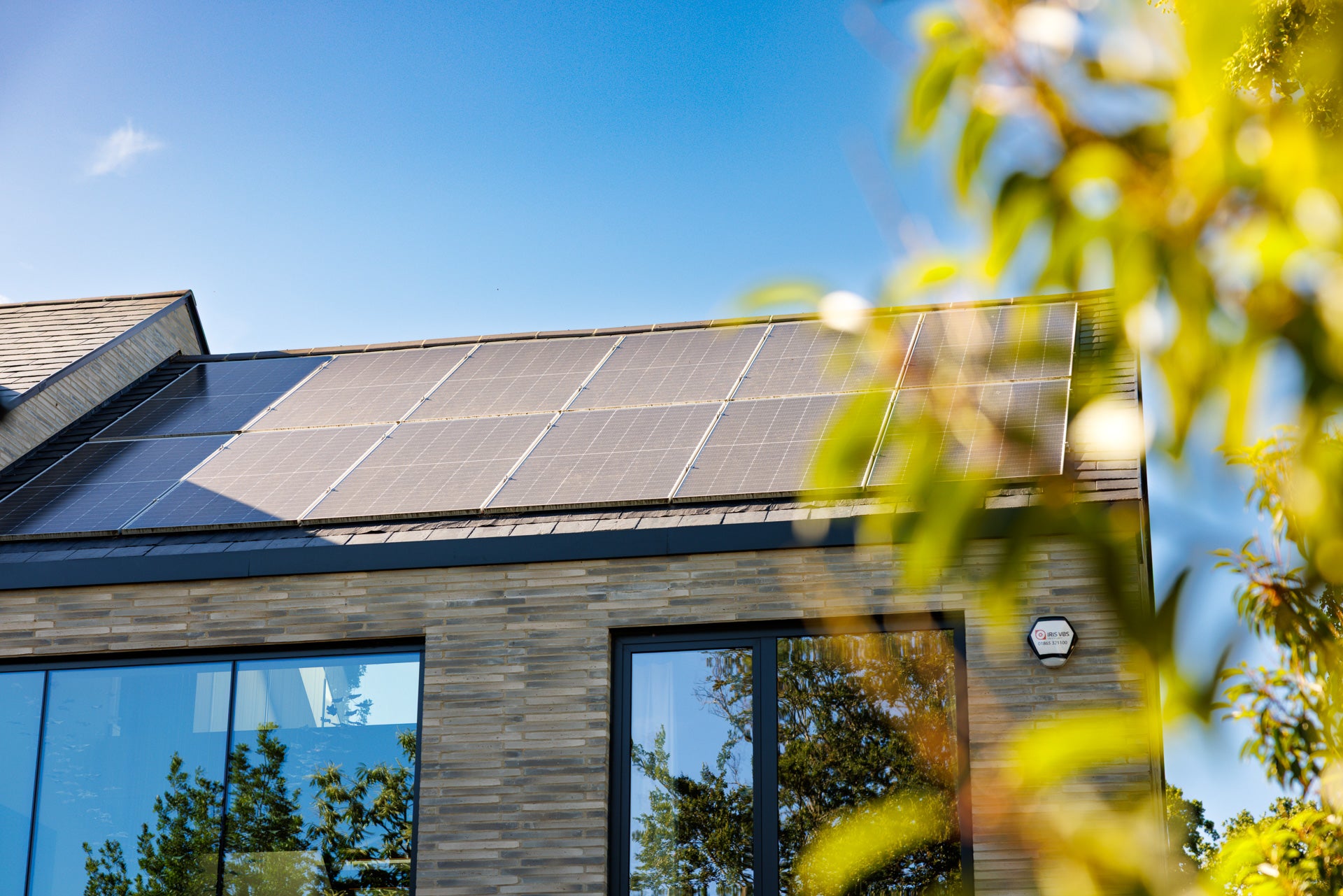

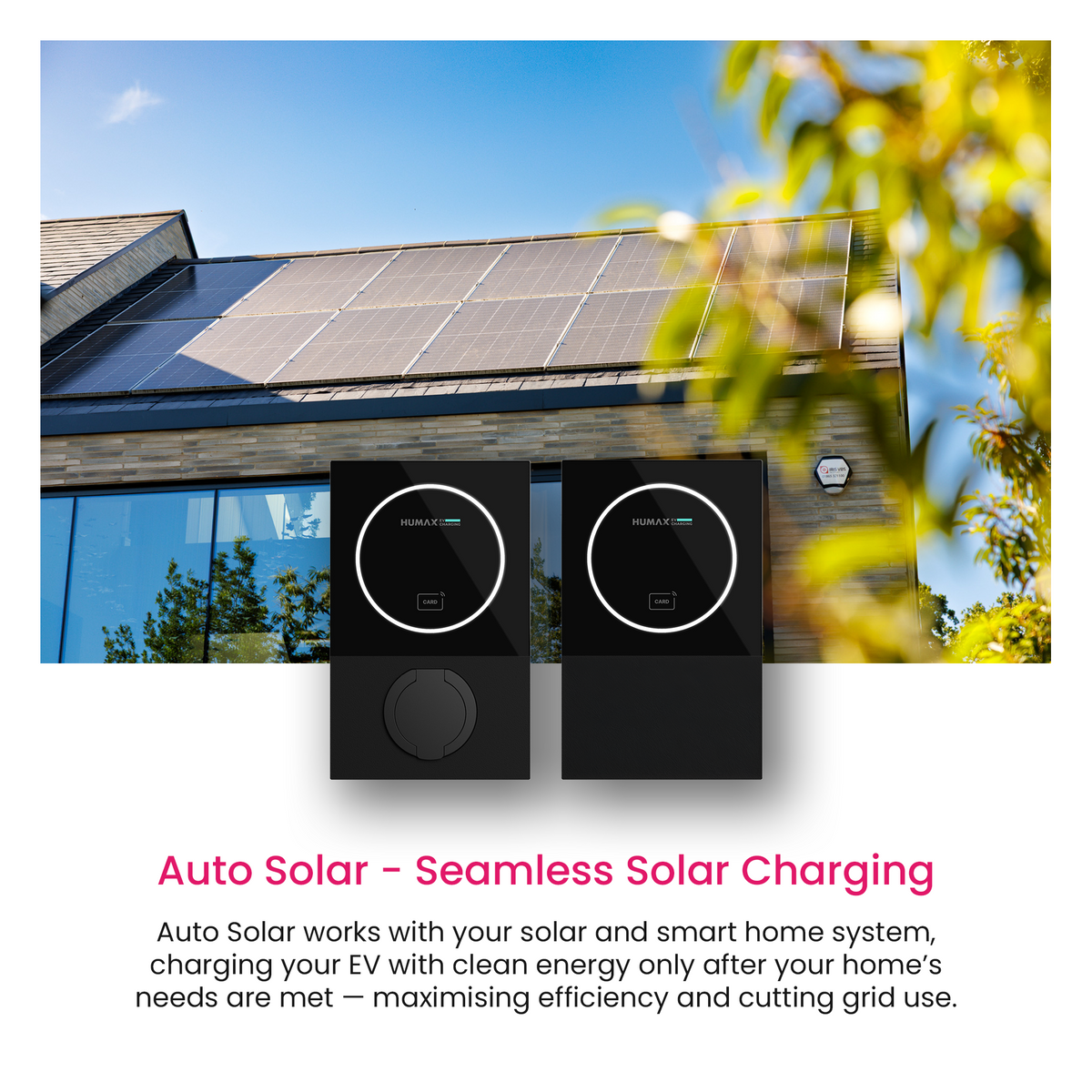

Auto Solar – Seamless Solar Charging
Compatible with your solar setup and smart home system, Auto Solar lets you charge your EV using clean, free solar energy. It also intelligently diverts excess solar power to your car only after your home’s energy needs are met — maximising efficiency and reducing your reliance on the grid.
DESIGN
Style meets smart charging
Perfect blend of design, functionality and personalisation.
Video
Need Product + Installation in one package ? - We’ve got you covered
If you’d like to get the charger and installation together, just click the link below and choose “Get a Quote.”
Don’t worry—it’s just a few simple questions to figure out the installation cost. Then you can pick your charger and pay for everything in one go. Easy!
Get Product + InstallationFAQ
Use this text to share information about your product or shipping policies.
What are V2G, V2H, and V2L?
• V2G (Vehicle to Grid): Sends energy from the EV battery back to the grid to reduce
electricity costs or generate revenue.
• V2H (Vehicle to Home): Uses EV battery power to supply a home’s electricity (useful
during outages or peak-rate hours).
• V2L (Vehicle to Load): Powers devices and equipment directly from the vehicle
(camping, construction sites, emergency backup, etc.).
Can I use V2G/V2H with MX7?
Currently, these functions are not commercially supported.
AC-based V2G/V2H requires both the vehicle (including its onboard charger) and the
charger to be approved by the DNO (Distribution Network Operator), such as
through G99/G100 certification.
MX7 hardware supports ISO 15118 communication, but the software and certification
process are still in progress. Commercial availability will be announced once ready.
What equipment is needed for V2G/V2H?
• Standard Type 2 cable
• Vehicle and charger that support bidirectional power flow and ISO 15118
• DNO approval and enrolments in an eligible tariff
• Some features may require a software subscription
Can MX7 provide home backup power during outages (V2H)?
Not at present. Future support may be possible through certified accessories, depending on
UK regulations and grid approval.
What are the requirements for V2G?
Vehicle manufacturer support, enrolment in a relevant tariff, and in some cases a software subscription.
How much can I save with V2G/V2H?
It depends on your installation, tariff, and usage patterns.
Is MX7 compatible with Octopus Energy tariffs?
• Intelligent Tariff: Integration in progress, support coming soon
• Agile Tariff: Not officially supported yet, under technical review
What is Intelligent Charging?
• Vehicle identification: Automatically adjusts charging to the vehicle’s battery size
• Tariff management: Prioritizes charging during off-peak hours to save money
Example: Plug in at 7 pm → minimal charging during peak rates → full charging from 11 pm onward
Can Intelligent Charging work without SOC (State of Charge) data?
Yes. It works with or without SOC data.
If SOC is available, the charger can automatically detect the battery level without setting a target.
Can MX7 integrate with solar PV?
Yes. It prioritises home energy needs first, then directs surplus solar power to EV charging.
What are the charge and discharge speeds?
• Up to 7 kW AC charging
• Discharge speed depends on vehicle capabilities and V2X certification

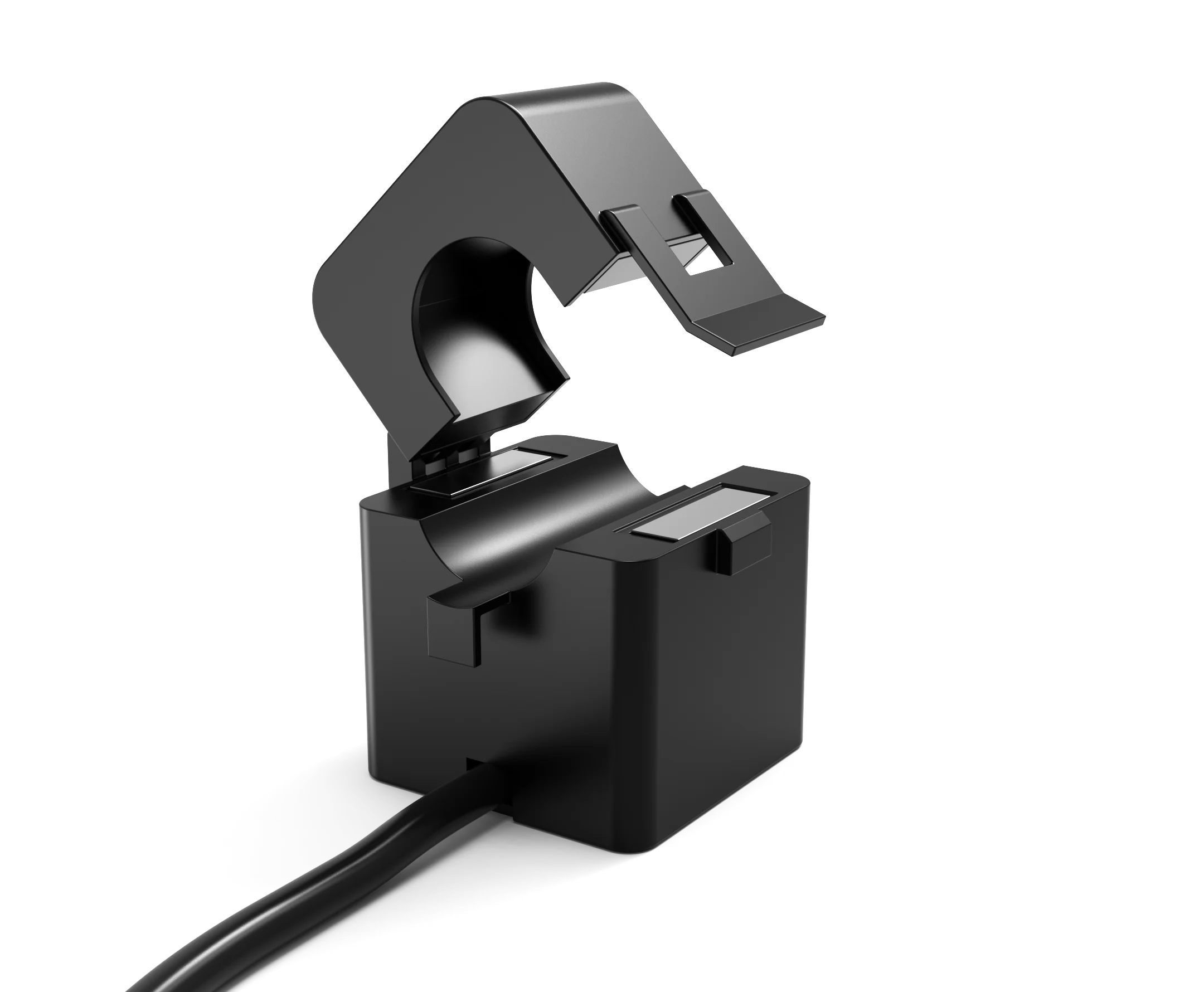

How is the CT clamp connected?
• Directly to the charger (can be extended via Cat6 cable)
• Usually works without an Eastron meter
• Additional metering may be required for special installations
Do I need a separate power supply line for installation?
Most existing supply lines can be used.
CT must be installed near the charger. Wireless CT is not supported.
What safety features does MX7 have?
• Temperature sensor (overheat protection)
• Tamper Protect Switch (prevents unauthorised opening)
• Overcurrent, earth leakage, and surge protection
App & User Interface - What can the MX7 app do?
• Start/stop charging remotely
• Monitor real-time status, history, usage, and cost
• Set custom charging schedules
• Authorize or block users

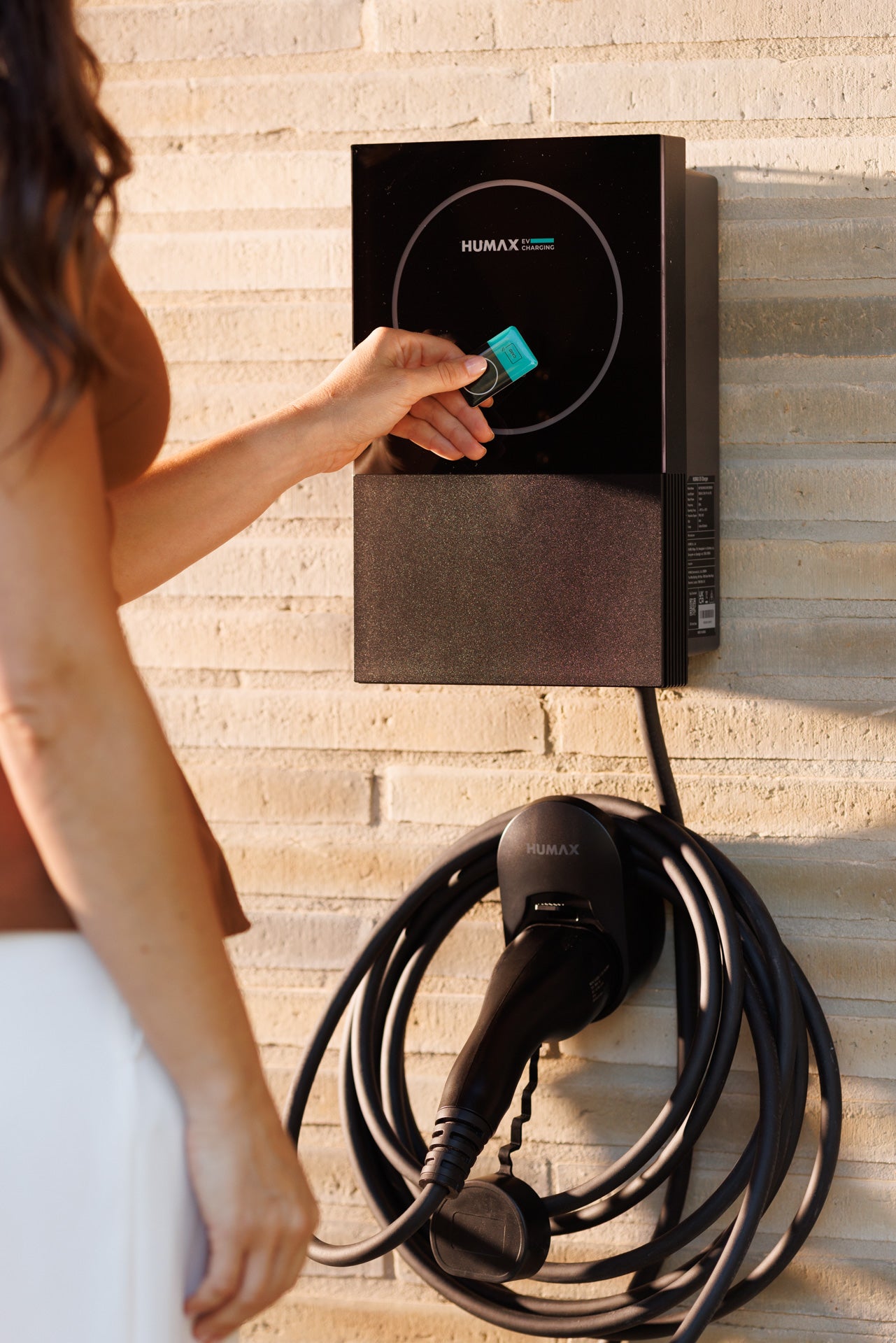

• Authenticate via RFID card
Can I use MX7 alongside another charger?
Yes, but charging speed may be reduced when used simultaneously. Check with a qualified installer before setup.
